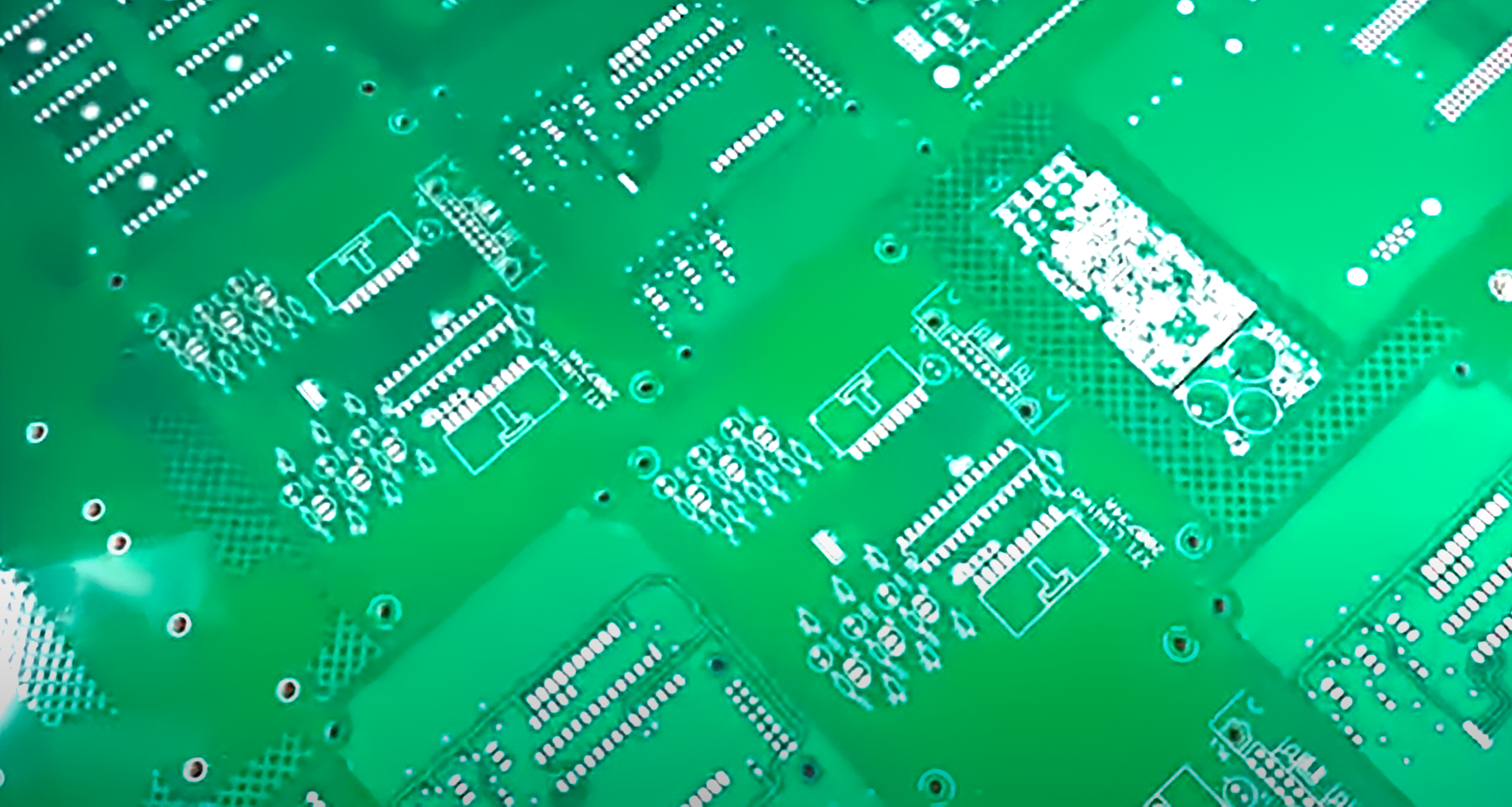

PCB Fabrication
- Choice of solder mask colour
- Up to 12 layers
- Gold or silver finish
- Choice of legend colour
- Choice of materials (Polyimide, FR4, Alclad)
- Optical inspection
- Electrical tests available
- Design reviews and support for hobbyists
PCB Assembly
- No additional tooling charges
- Any parts assembled: BGA’s, SMD, leaded, through-hole etc
- Solder paste stencil tooling included
- Selective soldering machines
- 3D AOI and high-power x-ray inspections available
- Low quantity options available

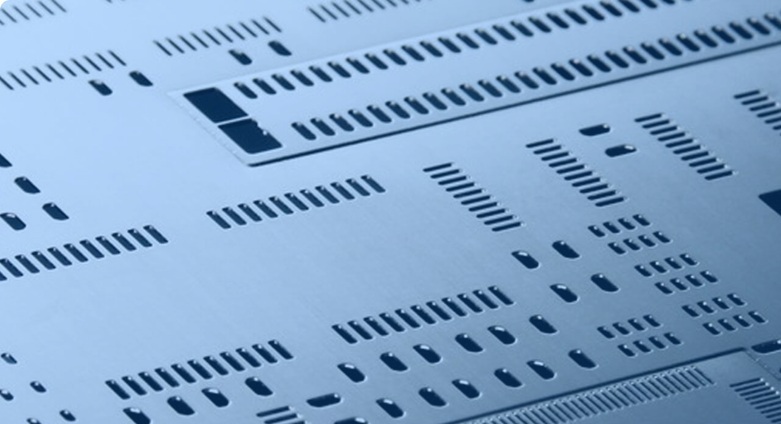

PCB Stencils
- Stencils come with wallets and hanging hooks for storage
- Full-sized stainless-steel stencils can be cut to fit most frame tensioning systems
- Text and tool numbers
- Multiple thickness options
- Fiducial markers
- Tooling holes

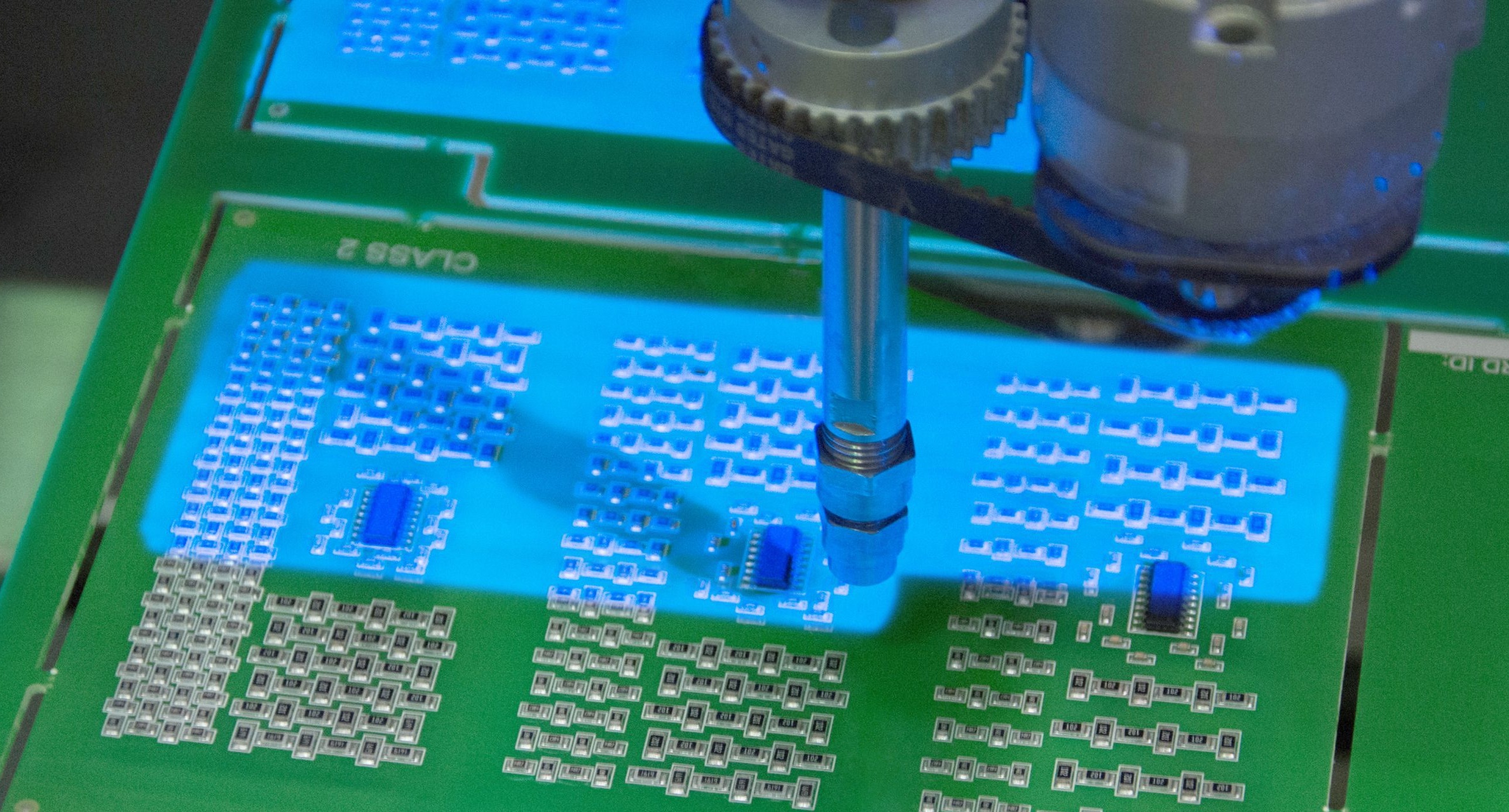

Conformal Coating
- 8 axis CNC selective spray robot
- Capable of custom spray patterns
- Computer controlled systems mean high quality repeatability
- Coatings are 100% inspected under UV

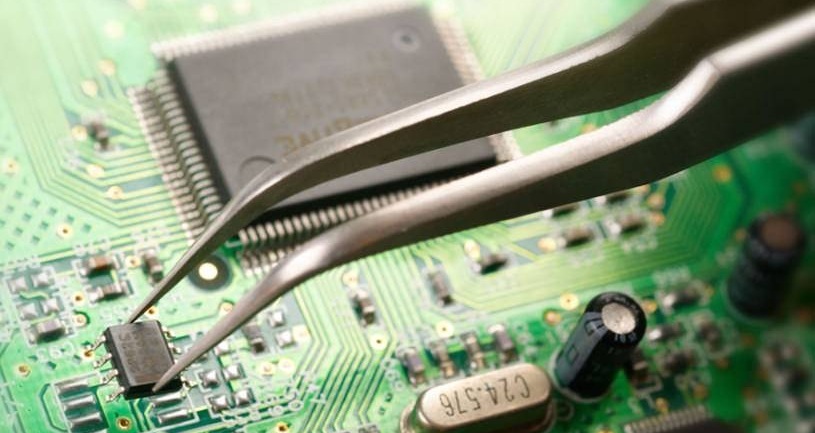

Diagnosis & Repair
- Pad and track repair for surface mount and through-hole components
- BGA rework and re-balling using advanced techniques
- Engineering change notice implementation
- Component replacement and circuit modifications
